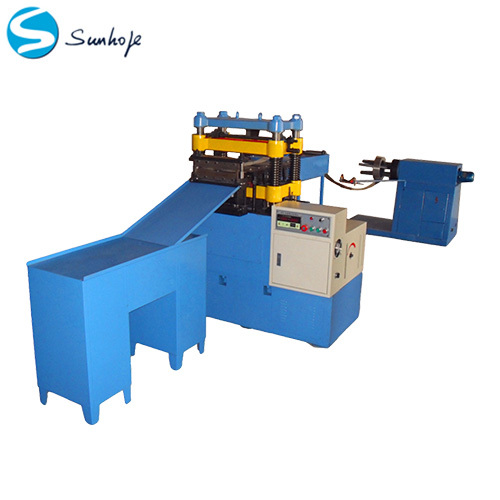

12x20mm Aluminum Fin Machine with Stepless Speed Control
Product Description
This advanced radiator fin forming machine specializes in producing high-precision aluminum fins with a tooth dimension of 12mm (height) by 20mm (spacing). Engineered for superior performance, it guarantees exceptional flatness across its die table, ensuring the consistent production of defect-free fins. It is an ideal and versatile solution for manufacturing high-quality components like Car Aluminum Radiators and Condensers.
Key Advantages
-
Unmatched Precision: Achieves an exceptional lower die table flatness of ≤0.02mm and maintains ≤0.03mm flatness during table rise for flawless fin quality.
-
Optimal for 8mm Fins: Specifically ideal for producing fins with an 8mm fin height.
-
Versatile Compatibility: Capable of forming fins for tubes with a thickness range of 1.5mm to 2mm.
-
Efficient Stepless Regulation: Features Variable Frequency Stepless Speed Regulation, allowing seamless adjustment of operation speed from 25 to 120 strokes per minute for optimized production.
-
User-Friendly Operation: Designed with an intuitive interface for easy control and reliable, low-maintenance operation.
Technical Parameters
| Parameter | Specification |
| Fin (Tooth Height x Spacing) | 12 × 20 mm |
| Maximum Fin Width | 300 mm |
| Machine Input Power | Variable Frequency Stepless Speed Regulation |
| Speed Range (Variable Frequency) | 25 ~ 120 Strokes/Minute |
| Highest Flatness of Lower Die Table | ≤ 0.02 mm |
| Flatness During Rise of Die Table | ≤ 0.03 mm |
| Power Supply | Three Phase 380V ±10%, 50Hz ±2% |
| Machine Weight | 1500 KG |
Applications
This machine is perfect for high-volume manufacturing environments, particularly in the automotive industry for producing radiator and condenser fins. Its high speed, accuracy, and ease of use make it suitable for various applications requiring precise aluminum fins with a maximum width of 300mm.
Packing & Shipping
-
Packaging: The machine is securely packed in a wooden crate for safe transportation. Includes a user manual and installation guide.
-
Shipping: Available via sea or air freight. Lead times and shipping details are confirmed upon order. Customers are responsible for applicable customs and import duties. Shipping insurance is available upon request at an additional cost.
About SUNHOPE
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
Core Services & Capabilities
- Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
- Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
- Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
- Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
Why Partner with SUNHOPE?
- Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
- Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
- Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
- True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
